Attachments transformation

Transformations in General

Transformation is a process that allows users to convert any attached file format type into a format that ODM can index. Currently, ODM can't accept csv files as a source of metadata, but ODM can accept tsv files for that purpose. This is solved with the help of transformation.

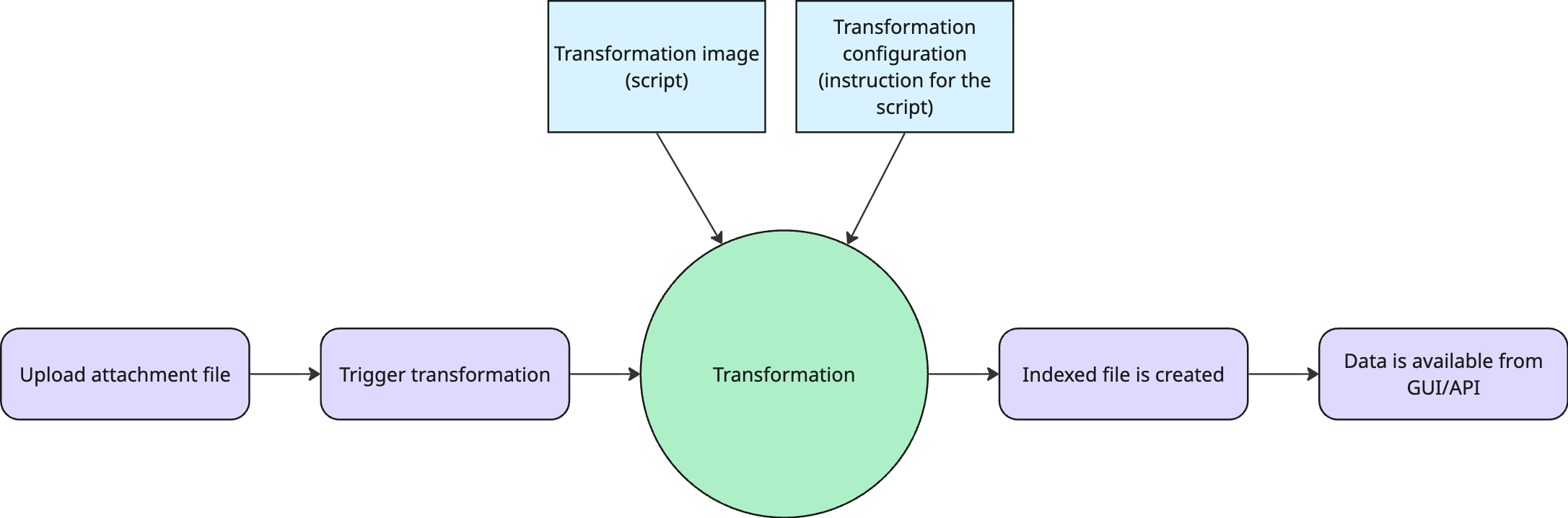

Each transformation consists of transformation script (image) and its configuration. For example, image has ability to transform CSV file to TSV, at the same time configuration provides information where this TSV should be places, e.g. Samples, Libraries, Preparations, Cell metadata, Expression, Variants, etc.

Get the list of available images

Currently ODM has default image called metadata-basic. This image allows user to transform CSV files into TSV to create Sample group.

metadata-basic transformation is introduced just for testing purpose

To get the list of available images via API go to processorsController Swagger definition of endpoints and use GET transformations/images. Endpoint response example:

[
  {
    "name": "metadata-basic",
    "version": "0.0.1",
    "description": "Basic converter from attachment to metadata",
    "input_formats": [
      "csv"
    ],
    "output_formats": [
      "samples"
    ]
  },
  {
    "name": "metadata-basic",
    "version": "0.0.2",
    "description": "Basic converter from attachment to metadata",
    "input_formats": [
      "csv"
    ],
    "output_formats": [
      "samples"
    ]
  },
    {
    "name": "metadata-basic",
    "version": "0.0.3",
    "description": "Basic converter from attachment to metadata",
    "input_formats": [
      "csv"
    ],
    "output_formats": [
      "samples"
    ]
  },
  {
    "name": "metadata-basic",
    "version": "latest",
    "description": "Basic converter from attachment to metadata",
    "input_formats": [
      "csv"
    ],
    "output_formats": [
      "samples"
    ]
  }
]

This transformation works only in combination with configuration.

Create new configuration

To create new configuration for metadata-basic image use POST transformations/configurations endpoint.

Initial request body:

{
  "data": {
    "additionalProp1": "string",
    "additionalProp2": "string",
    "additionalProp3": "string"
  },
  "description": "string",
  "name": "string"
}

Let’s create configuration that allows image to place transformed CSV file to Samples:

{
  "data": {
    "source": "csv",
    "destination": "samples"
  },
  "description": "Configuration which allows you to transform csv file into Sample group",
  "name": "csv to samples"
}

Response body example:

[
  {
    "id": 294862386,
    "name": "csv to samples",
    "data": {
      "destination": "samples",
      "source": "csv"
    },
    "description": "Configuration which allows you to transform csv file into Sample group"
  }
]

Now configuration is created and can be found via GET transformations/configurations endpoint:

[
  {
    "id": 294862386,
    "name": "csv to samples",
    "data": {
      "destination": "samples",
      "source": "csv"
    },
    "description": "Configuration which allows you to transform csv file into Sample group"
  }
]

Run the transformation

To proceed with transformation let’s use the following CSV table with Samples metadata:

Samples_metadata, a CSV file with Sample attributes.

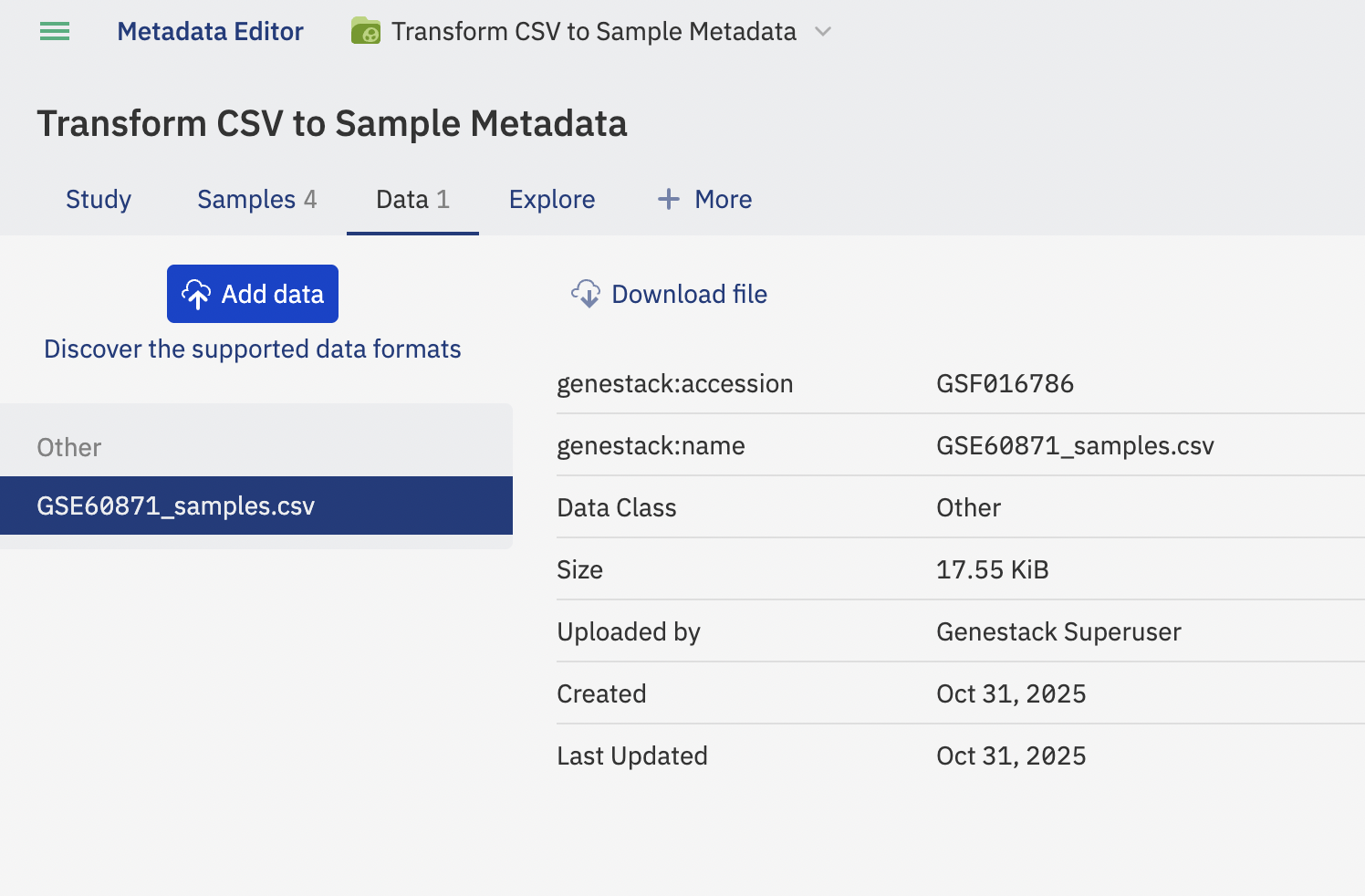

Upload the file as attachment to your Study:

Go to Transformation Jobs section in processorsController group in API. Use POST transformations/jobs endpoint to transform CSV file into Sample group.

Initial request body:

{
  "input_accessions": ["string"],
  "configuration_id": 1,
  "image_reference": {
    "name": "string",
    "version": "string"
  },
  "volume_size": 30,
  "dry_run": false
}

Fill in information about attachment genestack accession, configuration, image name and version:

{
  "input_accessions": ["GSF016786"],
  "configuration_id": 294862386,
  "image_reference": {
    "name": "metadata-basic",
    "version": "0.0.3"
  },
  "volume_size": 30,
  "dry_run": false
}

Response contains information about your Job id:

{
  "$schema": "https://odm-processors-controller:8080/schemas/TransformationJobId.json",
  "id": 341346019
}

To check the status of the Job use GET transformations/jobs/{id} endpoint:

{
  "$schema": "https://odm-processors-controller:8080/schemas/TransformationJobFields.json",
  "image_reference": {
    "name": "metadata-basic",
    "version": "0.0.3"
  },
  "input_accessions": ["GSF016786"],
  "configuration_id": 294862386,
  "volume_size": 30,
  "dry_run": false,
  "create_time": "2025-10-31T12:28:57Z",
  "status": {
    "state": "DONE"
  }
}

Transformation converts CSV file to TSV format and triggers POST jobs/import/samples/multipart endpoint automatically. It uploads new TSV file to Sample metadata group to the Study where initial CSV attachment is placed.

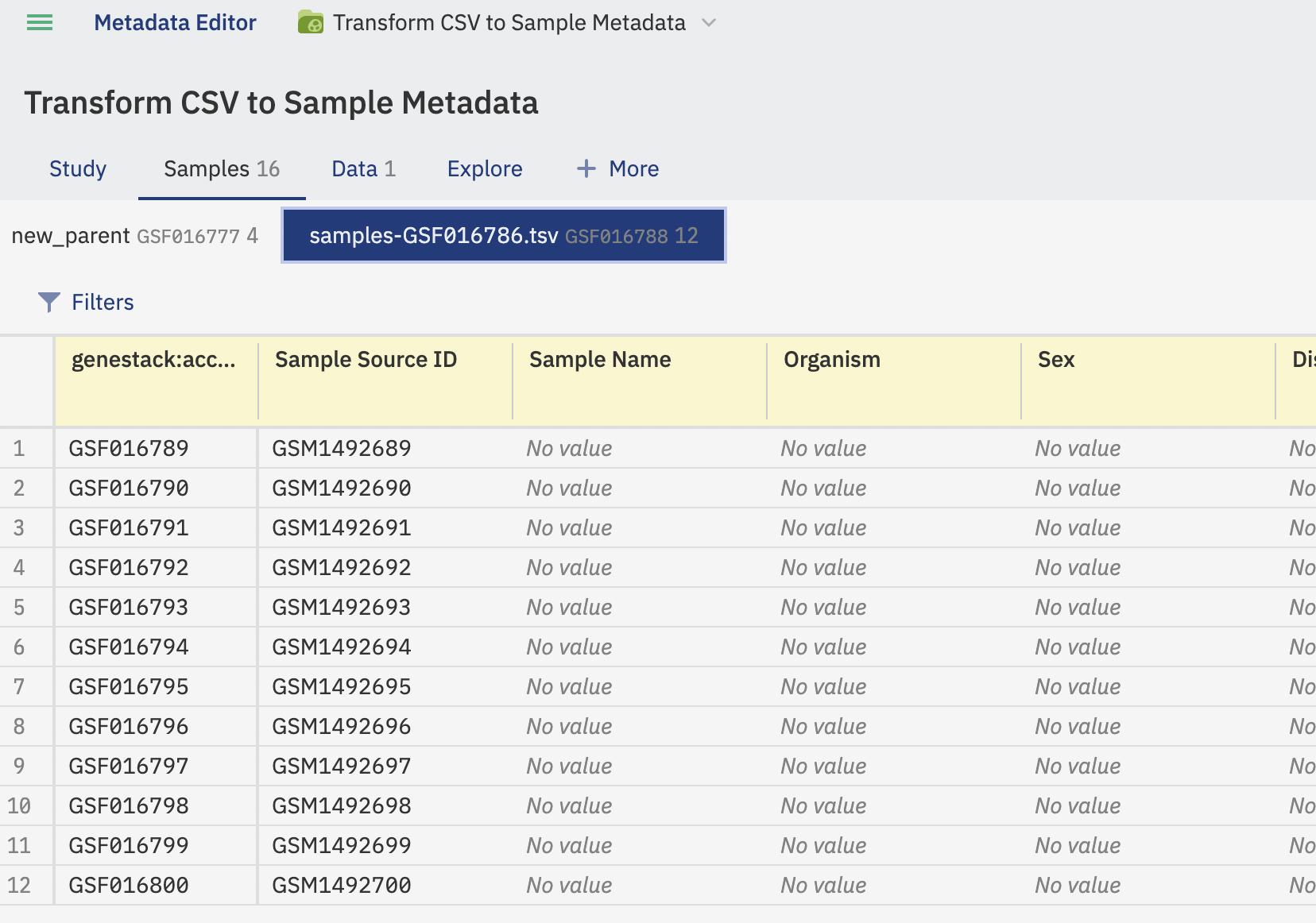

As the result new Sample metadata group was created in ODM:

To retrieve transformation job logs simply use job id in POST transformations/jobs/{id}/logs endpoint.

Transformation job logs are stored for 2 weeks as default in the system
